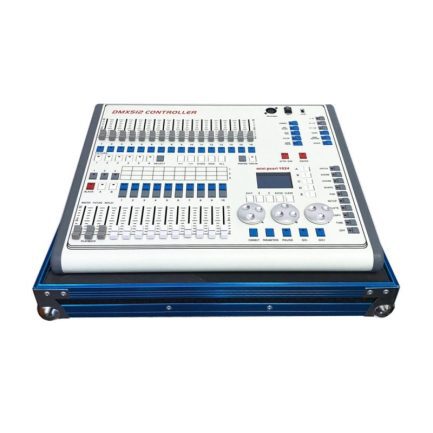

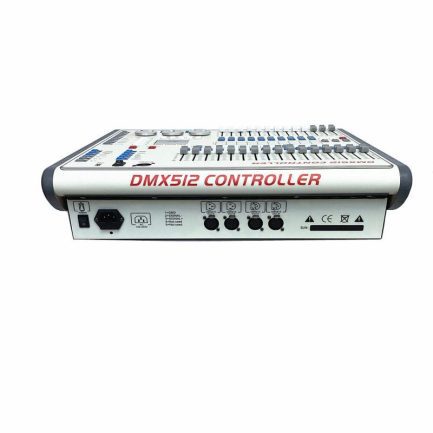

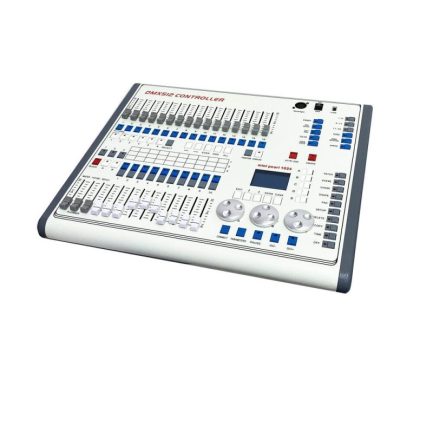

Mini Pearl 1024 DMX Stage Lighting Controller
DMX512 / 1990 standard, maximum 1024 DMX control channel, optically isolated signal output.
Maximum control 96 or 96 computer lights dimming, use pearl light library.
Built-in graphics trajectory generator, there are 135 built-in graphics, user-friendly graphical fixtures trajectory control, such as a circle, spiral, rainbow, chase and other effects. Graphics parameters (such as: amplitude, speed, interval, waves, direction) can be set independently.
60 repeat scenes, scenes for storing multi-step and single-step scene. Multi-step scenario can store up to 600 steps.
Backlit LCD display, display in English
Off data retention.
U-disk backup and upgrade.
Professional gooseneck lights for indoor and outdoor performances. (Optional)
Power: AC 100- 240V / 50-60Hz.
DMX512 channels: 1024
Mating number of fixtures: 96
Fixtures re-connected with the address code: Support
Lamps horizontal and vertical exchange: Support
Lamps channel inverting output: Support
Lamps channel sliding mode switch: Support
Each scanner maximum available control channels: Channel 40 main channel 40 trim
Fixture Library: R20 pearl light library support
The number of scenes that can be saved: 60
The number of scenes that can run simultaneously: 10
The total number of steps in a multi-step scenario: 600
Scene time control: fade in, fade out, LTP sliding
Graphics can be stored for each scene: 5
Fader scenes and dimming: Support
Interlock Scene: Support
Point Control scenarios: support
Graphics Generator: can generate Dimmer, P / T, RGB, CMY, Color, Gobo, Iris, Focus Graphics
Graphics can be run at the same time the number: 10
Master Fader: Global, repeat, lighting
Now Black: Support
Dial to adjust the channel values: support
Fader adjust the channel values: support
Fader Dimmer: Support
U disk read: Support FAT32 format
