Macchina del Fumo Basso a 2 Bocche 3KW con Flightcase

1pc/Lot 3000W Double Outlet Water Fog Machine Small Case 3KW Water Based Low Ground Smoke Machine With Double Hose For Wedding Party



The Small Size Double Outlet Low Fog Machine is a new amazing low fog machine, it works with only water and fog liquid, no need Dry Ice.

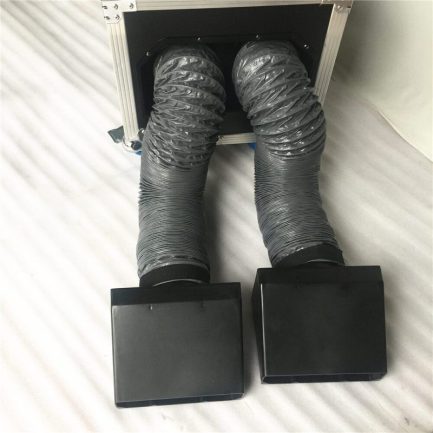

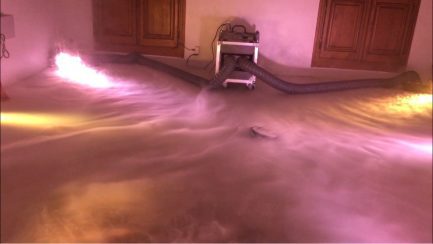

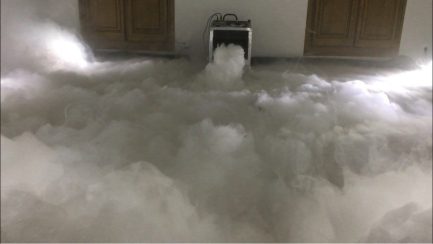

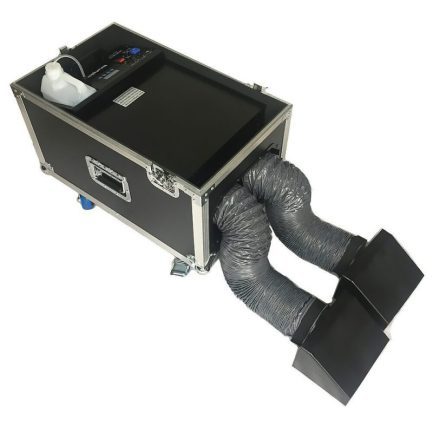

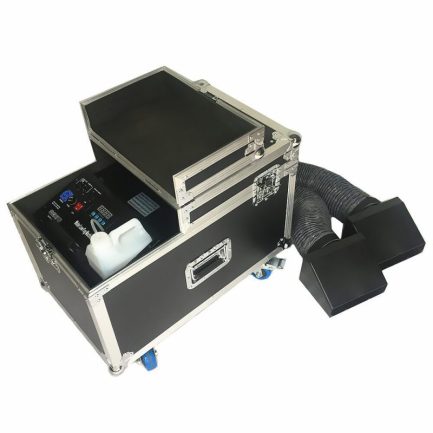

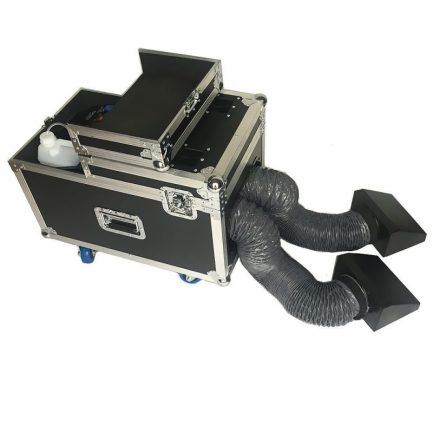

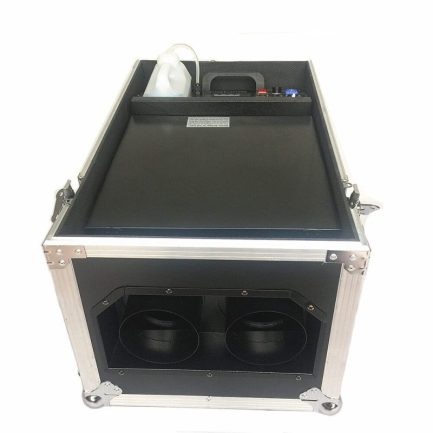

With double hose and outlet, can move the plastic outlet freely to provide a huge amount of white low fog more wide.

For fog liquid function, you could get more heavier and denser fog, the machine is controlled by Lcd display, remote controller and dmx512

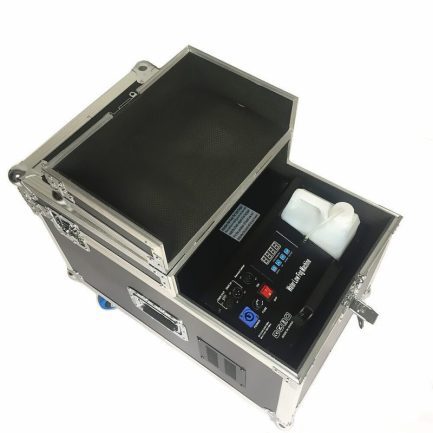

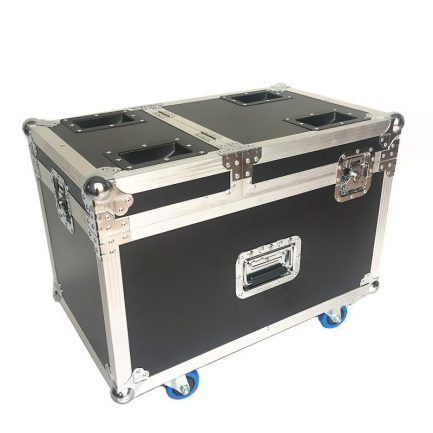

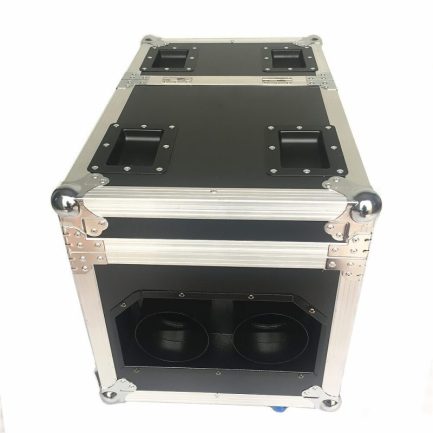

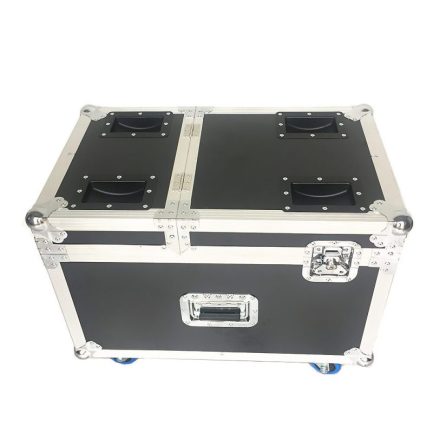

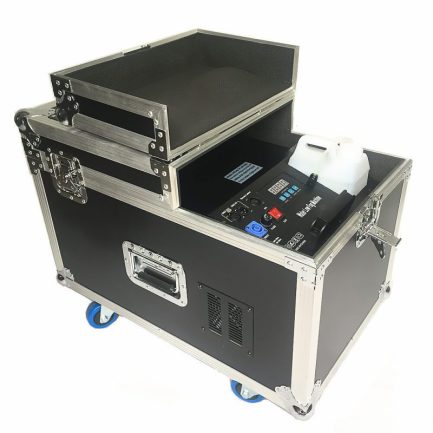

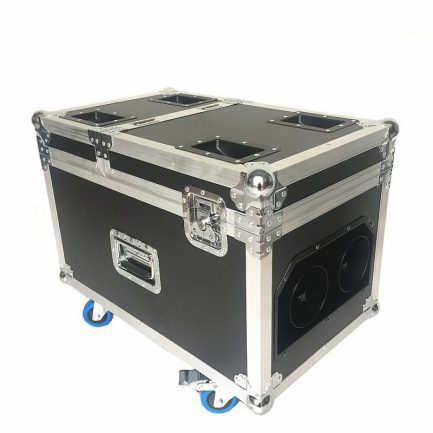

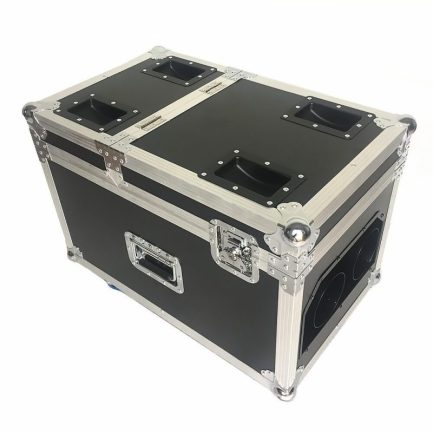

Equipped with wheels, and package by flight case, more easy for moving and installation.

High efficiency and low usage cost, it is the best option of stage low fog effect.



Technical specification:

Voltage: 220V or 110V

Power: 3000W

Fuse: 20A/250V

Smoke output:10000 cu.ft per minute

Area Coverage: Around 100m2

Warm up time: First time 5 minutes

Control: DMX512, LED display control, Remote control

Main fuel : Water, and water based low fog liquid ( 1 Liter liquid can use for nonstop shoot fog about 2 hours)

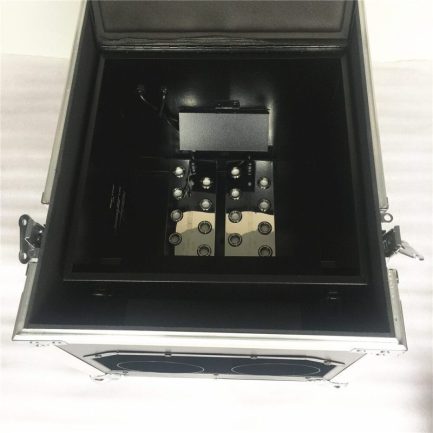

Water tank capacity: Can add 7~9L clean water according to water level line. In cold winter, can add 30~40 degree warm water by temperature. It will be better for nebulization.

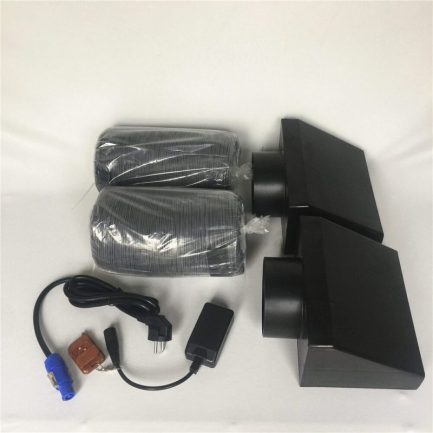

The big water tank can also storage the 2pcs hoses and 2pcs plastic outlets when you don?t use the machine, save space for you.

Fog tank capacity: Add 2L low fog liquid to create heavy low fog effect.

Water and fog liquid outlet is in the bottom of the case, will easy drain off once open the switch.

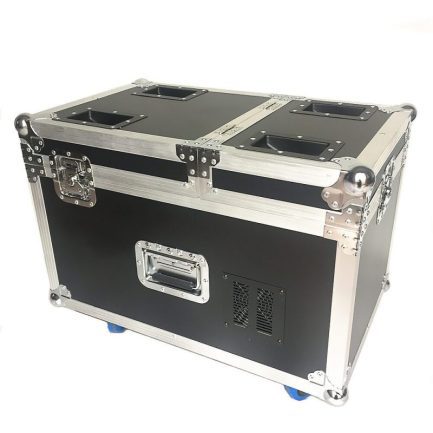

Package: Flight case, will use bubble film and plastic film double packing to ensure safety shipping

Packing size:70*42*56cm

Gross weight: 36Kg



Operation:

1. Open the flight case, make sure all parts completed of the machine. Check and take out the fog pipe from the water tank. Then fill normal clean water about 7-9L according to the water level line into the water tank (Should not put other chemical liquid or fog liquid ), until the machine without warning noise ,stop to put water, if come out some noise, that means the water not enough. The main board or other electric parts must keep dry, if water spray to those parts, must cut off the power immediately and ask for technical support .
2. Add 2L low fog liquid in fog tank. If only put water in fog tank, can create thin fog, add only 2L Pure low fog liquid, will have better fog effect.
3. If need better effect can use water ice(note: can not put dry ice or CO2). Put water in tank to Lowest Water Line, then add ice to Maximum Water Line, the fog will stay on the ground much longer.

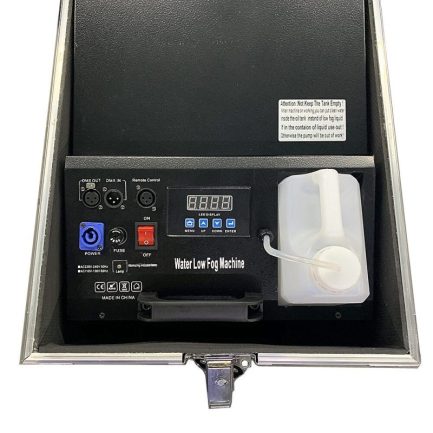

4. First connect to the electricity, then turn on the red switch button, the machine under state of heating, you can see the display screen with ?WARM UP?, after about 6MIN, READY on display. According to the menu display P, then press the up or down key, 1-100 range are spray smoke or choose wireless remote control ?unlock? button or DMX CH1,then you can see fog come out ?..



Notice:

1. Always make sure there is liquid in both tanks but no more than the MAX LEVEL. This machine is different with normal fog or low fog machine, as it can?t work with over level liquid if your pump switch is off. Operating without any liquid inside will cause pump out of work. If your low fog liquid is used up, can add clean water in the fog tank instead of the low fog liquid when the machine on working.
2. If both tank is water, will create thin fog, can only used indoor and no wind, the fog need enough time to accumulate, the wind will dissipate the fog quickly. It is good for small stage and water no cost, also easy to get. If want perfect heavy low smoke effect, MUST water tank put water, fog tank put low fog liquid.
3. Low fog liquid is pure water based low fog mist liquid which no add water in it. Can only ship by sea, can’t by express. If you can’t find this kind fog liquid, can also use heavy fog liquid to instead.
4. The machine can operate nonstop, if you can add water and fog liquid once they use up
5. We recommend a frequent cleaning of the unit. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents.

6.After you use the machine, need drain off the water in tank, then use cloth to dry it. Every time after usage, don?t turn off the power immediately, wait for 1-2 minutes then turn off the power.



Packing List

1. 1. 1pc 3
   2. ?water low fog machine
   3. 000w1pc powercon cable
