Laser BEAM a Testa Mobile RGB DMX & Pattern

Laser BEAM a Testa Mobile RGB DMX & Pattern

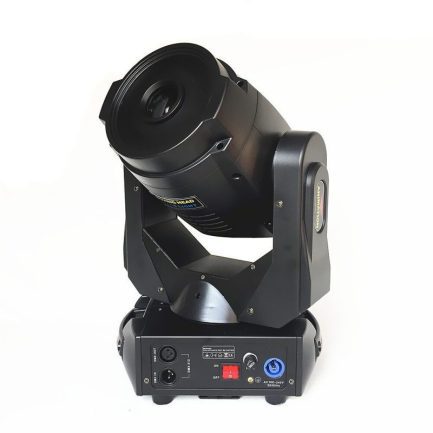

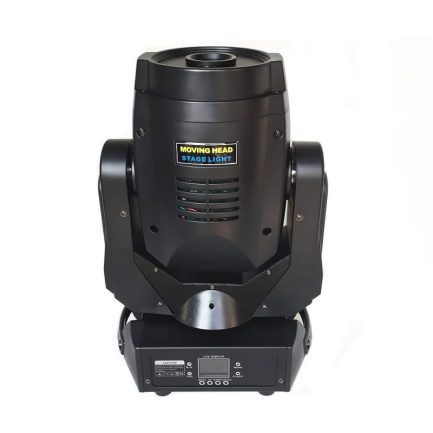

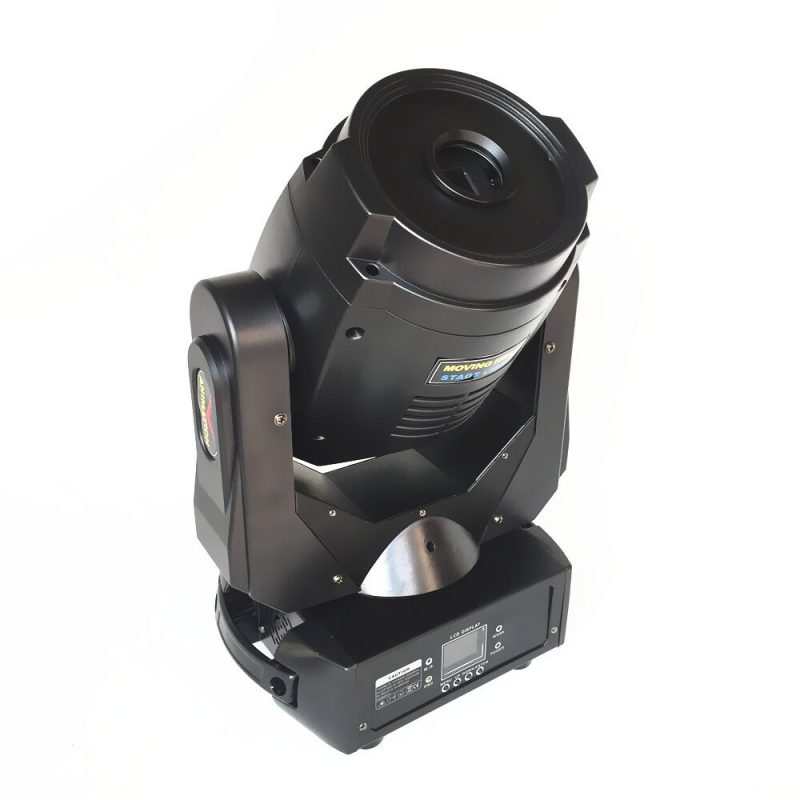

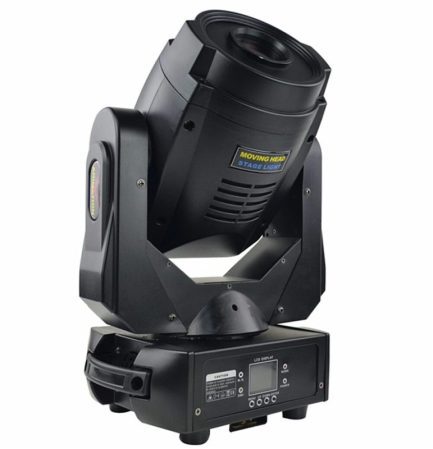

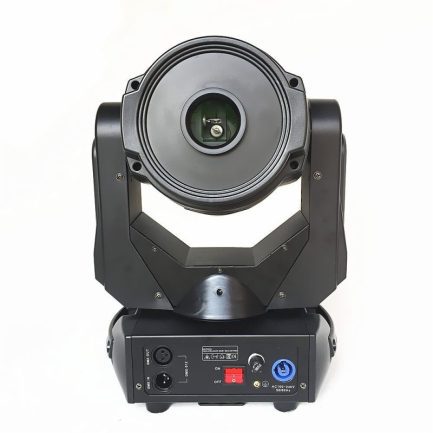

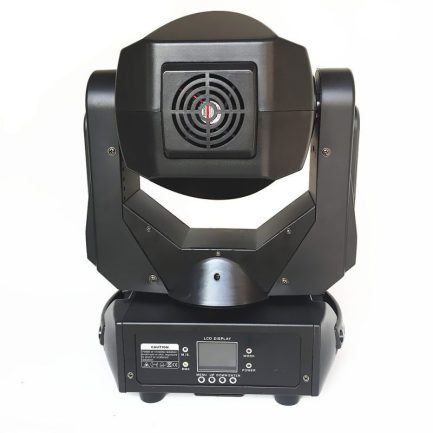

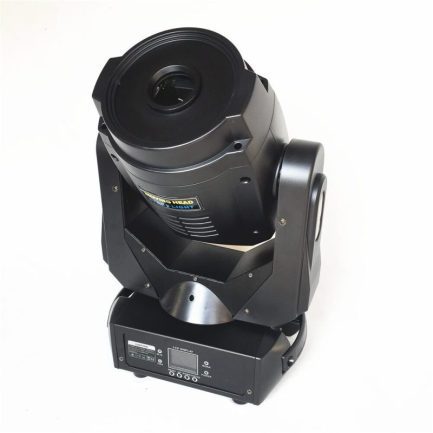

2W/4W RGB DMX Moving Head Laser Light Animation Pattern Shark Moving Beam Laser Light For Bar Party Disco Event Cartoon Home Wedding Club Effect Show

Feature:

1. Independent R&D circuit, program, and structural appearance. 2.Small housing, lightweight, sharp light. 3. Laser parts and moving head unified circuit and software design.

Specifications:

◎BY-ML2W

Configuration：R635-500mW/G520-500mW/B445-1W

◎BY-ML4W

Configuration：R635-1W/G520-1W/B445-2W

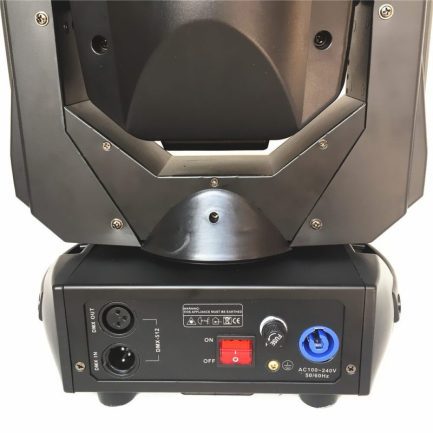

◎Rated Voltage: AC100~240V 50/60Hz    Rated Power: <300W

◎Scanner: 30Kpps @8° , scan angle:±30°; Input signal:±5V; Linearity distortion<2%

◎Motor: 3 phase 42 motor 2pcs

◎Pan/Tilt: X axis 540°Y axis 270°

◎Modulation: analogue

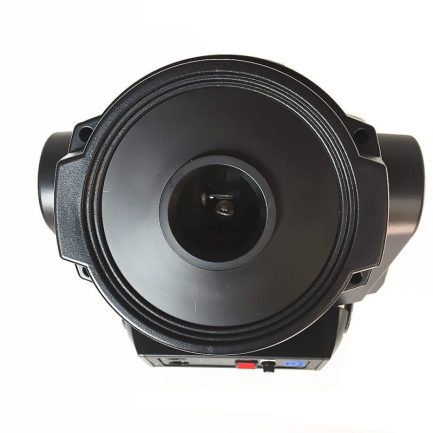

◎Beam diameter and Divergence : 5mm; <2mrad

◎Control mode: Music (four mode with black out)/Automatic/Master-Slave/DMX512(19CH)

◎Demonstration effect: Built-in 140 pattern and 5 groups of animation

◎DMX effect: Single pattern mode, and with the function of unique blanking, strobing, rotating, movement, billowing, zoom, drawing, speed and color etc.

◎Operating requirement: dry, less dust, 10~40℃(environmental temperature) , will reduce the attenuation of the diode and extend the life of the light.

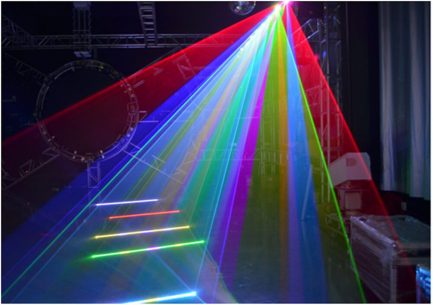

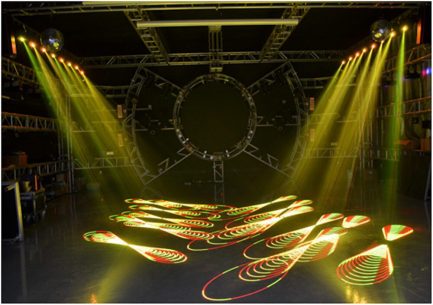

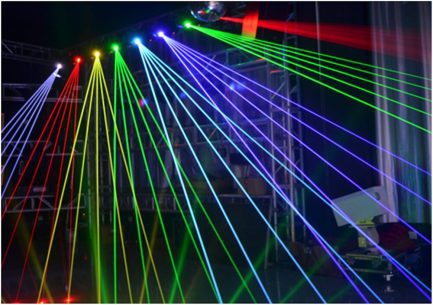

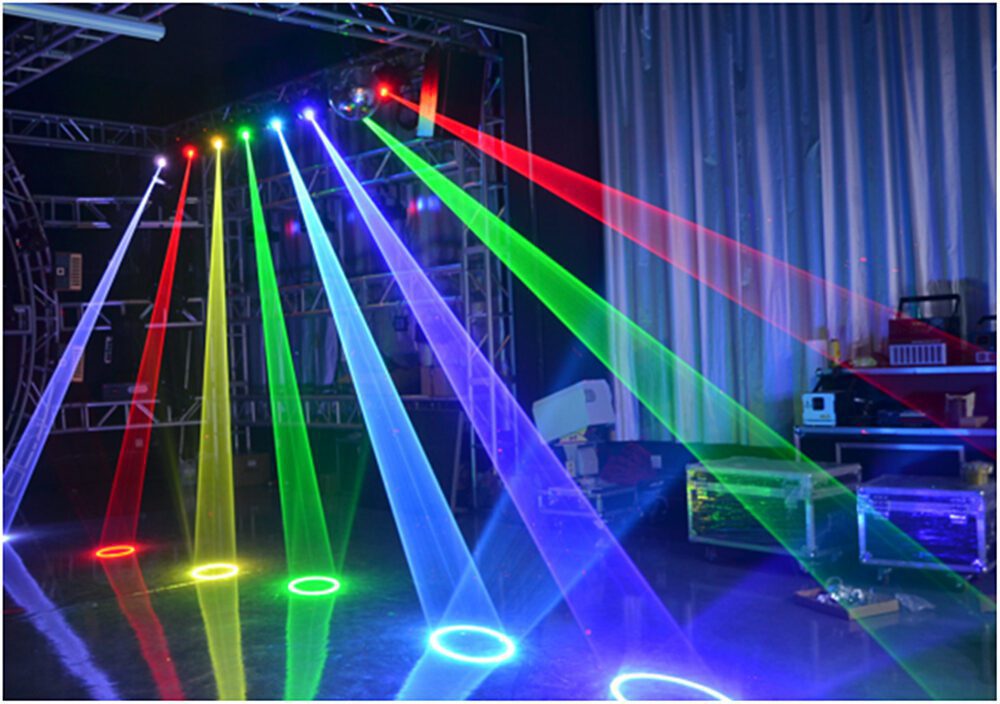

◎Application: Disco, club, KTV, Pub, Vocal concert, advertising promotion etc.

◎Size:34.5*23*48cm

◎N.W./G.W.: 8.5/9.5 kg

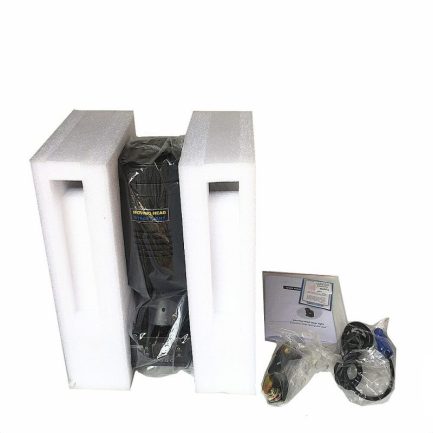

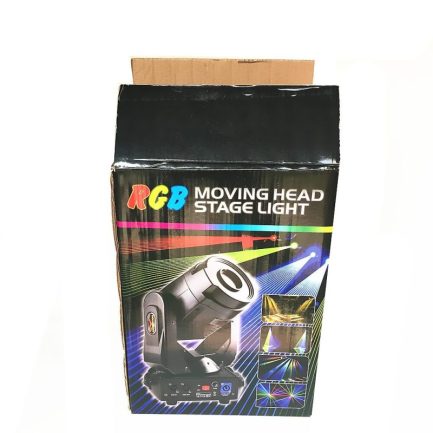

Packing size(L x H x W): 345 x 230 x 480mm

Gross weight: 9.5 Kg

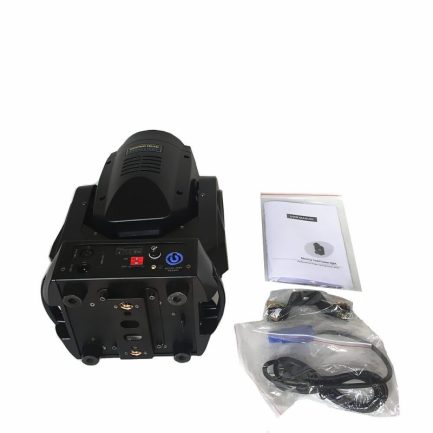

2in1 Flight case size(L x H x W): 660 x 460 x 650mm

Gross weight: 41Kg
