Powerful 4000W Water Fog Machine 4KW Water Based Low Ground Fog Smoke Machine With Double Hose Outlet For Wedding
The Small Size Double Outlet Low Fog Machine is a new amazing low fog machine, it works with only water and fog liquid, no need for Dry Ice.

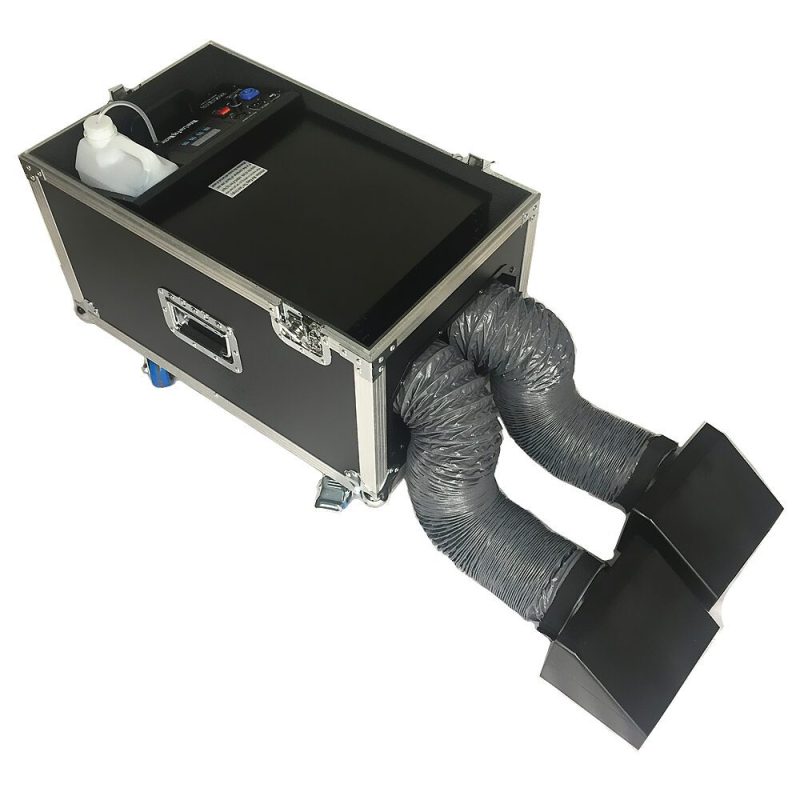

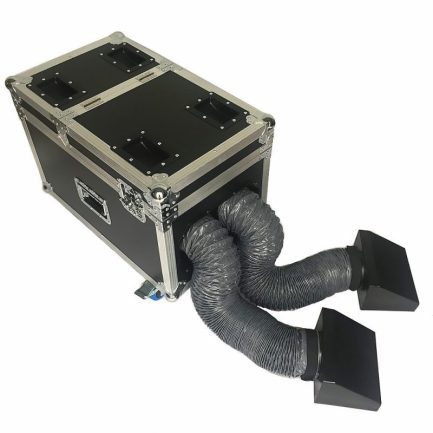

With double hose and outlet, can move the plastic outlet freely to provide a huge amount of white low fog wider.
For fog liquid function, you could get heavier and denser fog, the machine is controlled by Lcd display, remote controller and dmx512

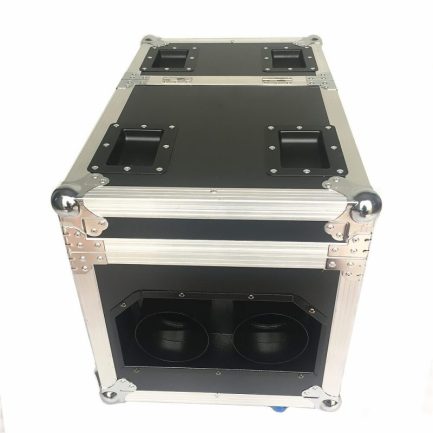

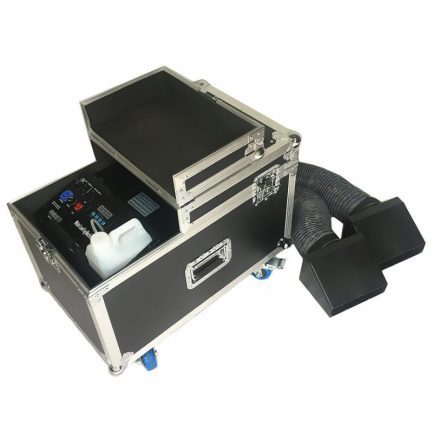

Equipped with wheels, and package by flight case, easier for moving and installation.
With high efficiency and low usage cost, it is the best option for stage low fog effect.
Voltage: 220V or 110V
Smoke output:12000 cu.ft per minute
Area Coverage: Around 100m2
Warm-up time: First time 5 minutes

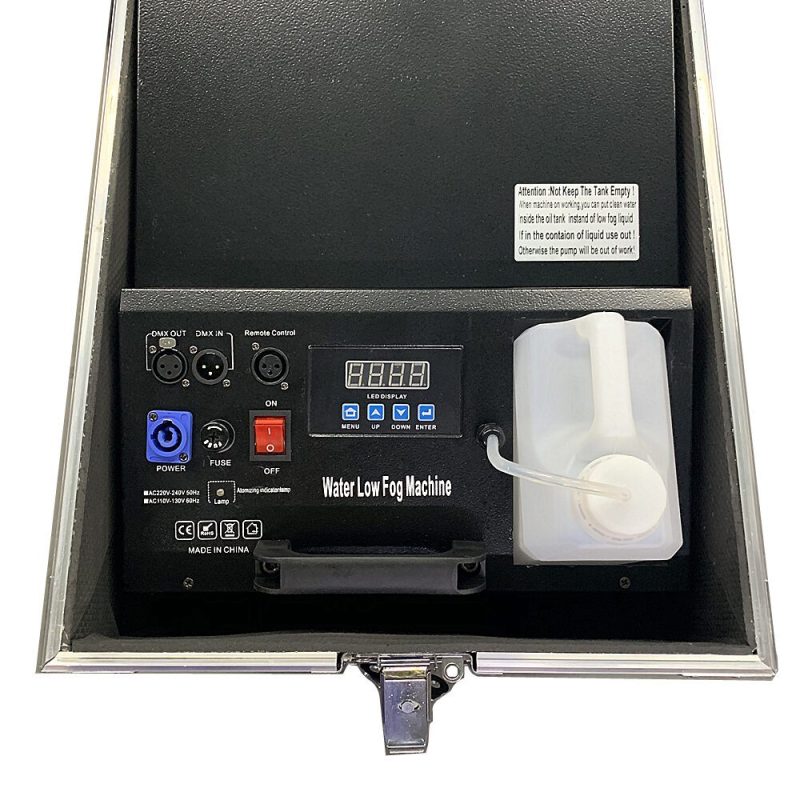

Control: DMX512, LED display control, Remote control

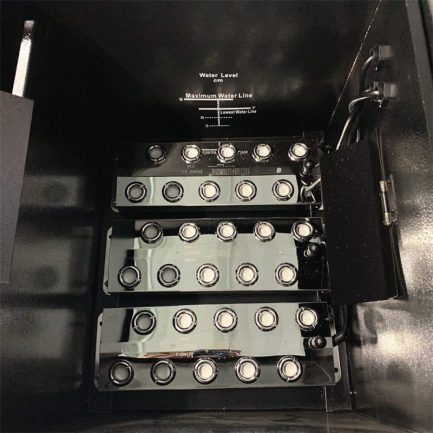

Heater: Use 3pcs Keri water atomizer board
Main fuel: Water, and low fog liquid ( 1 Liter liquid can use for nonstop shoot fog about 2 hours)

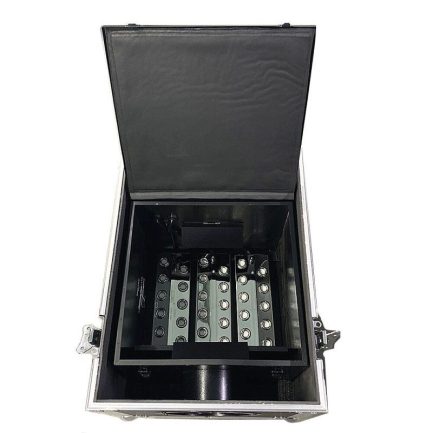

Water tank capacity: Can add 7~9L clean water according to water level line. In cold winter, can add 30~40 degree warm water by temperature. It will be better for nebulization.
The big water tank can also store the 2pcs hoses and 2pcs plastic outlets when you don’t use the machine, save space for you.
Fog tank capacity: Add 2L low fog liquid to create a heavy low fog effect.
Water and fog liquid outlet is in the bottom of the case, will easily drain off once open the switch.

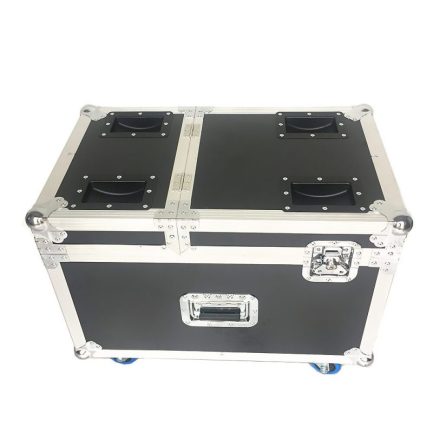

Package: The flight case, will use bubble film and plastic film double packing to ensure safe shipping
Gross weight: 36Kg
- Open the flight case, make sure all parts are completed of the machine. Check and take out the fog pipe from the water tank. Then fill normal clean water about 7-9L according to the water level line into the water tank (Should not put other chemical liquid or fog liquid ), until the machine without warning noise,stop to put water, if come out some noise, that means the water not enough. The mainboard or other electric parts must keep dry, if water spray to those parts, must cut off the power immediately and ask for technical support.
- Add 2L low fog liquid to the fog tank. I only put water, can create thin fog, add only 2L Pure low fog liquid, will have better fog effect.
- If need better effect can use water ice(note: can not put dry ice or CO2）
- First, connect to the electricity, then turn on the red switch button, the machine under a state of heating, you can see the display screen with ‘WARM UP’, about after 6MIN, READY on display. According to the menu display P, then press the up or down key, 1-100 range are spray smoke or choose wireless remote control ‘unlock’ button or DMX CH1, then you can see the fog come out …..
- Always make sure there is liquid in both tanks but no more than the MAX LEVEL. This machine is different from normal fog or low fog machines, as it can’t work with over-level liquid if your pump switch is off. Operating without any liquid inside will cause the pump out of work. If your low fog liquid is used up, can add clean water in the fog tank instead of the low fog liquid when the machine on working.
- If both tanks is water, will create thin fog, can only use indoor and no wind, the fog need enough time to accumulate, the wind will dissipate the fog quickly. It is good for a small stage and water at no cost, also easy to get. If want a perfect heavy low smoke effect, MUST water tank put water, fog tank put low fog liquid.
- Low fog liquid is pure water-based mist liquid which no add water to it. Can only ship by sea, can’t by express. If you can’t find this kind of fog liquid, can also use heavy fog liquid instead.
- The machine can operate nonstop if you can add water and fog liquid once they use up
- We recommend frequent cleaning of the unit. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents.
6.After you use the machine, need to drain off the water in the tank, then use a cloth to dry it. Every time after usage, don’t turn off the power immediately, wait for 1-2 minutes then turn off the power.
- 1pc 4000w water low fog machine
- 1pc powercon cable
- 1pc remote controller with control board( Without battery, customer need buy-in own country)
- 1pc user manual
- 2pc hose pipe
- 2pc Plastic outlet
